Multipurpose S/s Distilling column

R 9,500.00

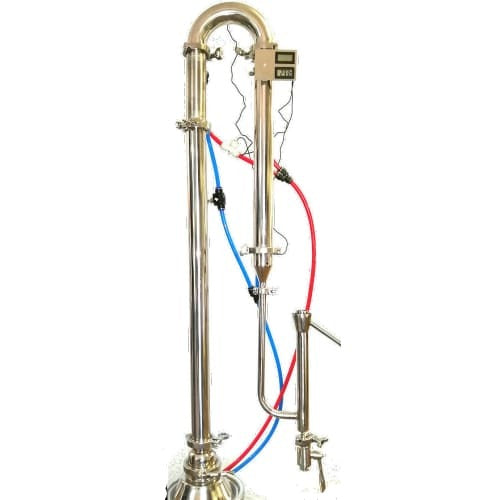

4 in 1 Multipurpose Distillation column to suite your every distillation need.

Complete 2 inch S/s column designed to be able to do a Stripping run, Pot distillation, Ginning distillation as well as a Reflux distillation.

This column can be fitted to a 25, 35 or 50l S/s boiler. (sold separately)

The column comes complete with:

  • 2 inch extension
  • 2 inch Main reflux condenser
  • 180 bend fitted with thermometer
  • Spirit condenser
  • Surge arrestor
  • Parrot and drain valve
  • All water connections and piping for 2 x condensers
  • Copper mesh for extension
  • All clamps and seals
  • 2 inch sieve for ginning

If fitted to a 50l boiler a reducer,clamp and seal will be extra.

This Pack includes:

   1 x 180 bend S/s (2 inch) with thermowell

   1 x 2 Inch Extension Pipe (800 mm in length)

   1 x 2 Inch Main Reflux Condenser (200 mm in length)

   5 x 2 Inch Silicone Seal for Sanitary Fittings

   1 x 2 Inch Spirit Condenser (500 mm or 600 mm in length)

   5 x 2 Inch Stainless Steel Tri-Clamp

   2 x 3/4 Inch Silicone Seal for Sanitary Fitting

   2 x 3/4 Inch Stainless Steel Tri-Clamp

   1 x Ball valve 3/4 inch

   1 x Bracket for Small Digital thermometer

   2 x Brass thermowell for pneumatic T piece

   1 x Copper mesh (Column packing) (500g)

   4 x Pneumatic Elbow 1/2 Inch to 12 mm

   1 x Pneumatic Needle Valve 12 mm

   1 x Pneumatic Straight 1/2 Inch to 12 mm

   1 x Pneumatic T-Connector 12 mm

   2 x Pneumatic Y-Connector 12 mm

   1 x Small Distilling parrot S/s 3/4 inch

   1 x Stainless steel sieve (2 inch)

   1 x Surge Breaker 2 Inch to 3/4 Inch

Liquid error (sections/product-template-default.liquid line 417): Exceeded maximum number of unique handles for all_products.    2 x Thermometer digital (with probe wire)

Liquid error (sections/product-template-default.liquid line 417): Exceeded maximum number of unique handles for all_products.    3 x Water hose (Blue) METERS

Liquid error (sections/product-template-default.liquid line 417): Exceeded maximum number of unique handles for all_products.    3 x Water hose (red) METERS


R 9,500.00
